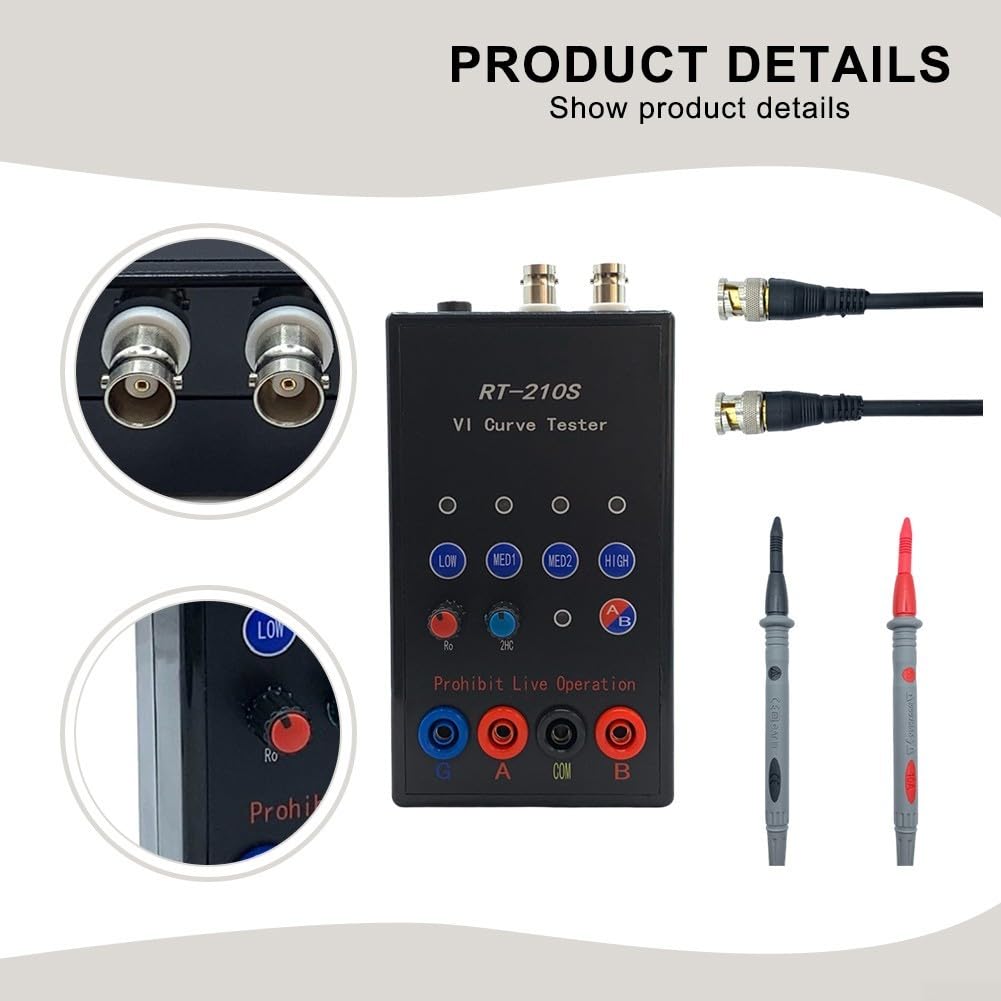

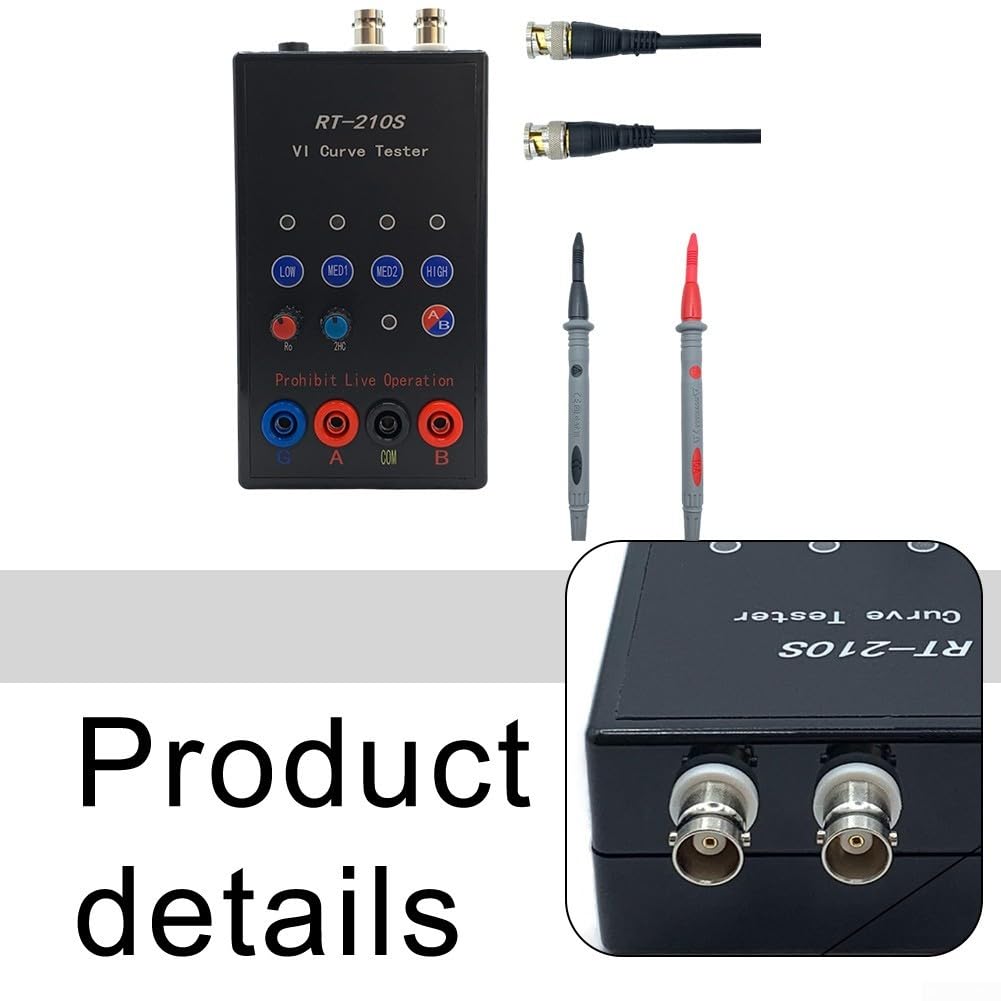

210S Electronic VI Curve Analyzer Dual Channel Circuit Board Testing Equipment with 4 Adjustable Frequencies 4 Resistance Levels for ASA Signal Analysis Circuit Board Fault Detection Testing Device

Features:*High Safety Standards: The 210S VI-Curve Tester allows for ASA testing without the need to power the circuit board, Assure that the testing process is safe and does not interfere with the circuit's operational state. *Versatile Testing Capabilities: This device can test various types of circuits, including digital, analog, and mixed-signal components, as it does not rely on the functionality of the components on the circuit board. *Dual-Channel Signal Input: The tester supports dual-channel signal inputs, enabling simultaneous analysis of two different signals for comprehensive performance evaluation. *Adjustable Frequency and Resistance: Users can select from four adjustable frequency settings and four resistance levels, providing flexibility to tailor the testing parameters according to specific circuit requirements. *Convenient Power Supply: The 210S VI-Curve Tester operates on a DC 5.5*2.1 interface and requires a DC 24V 1A power adapter (not included), Assure compatibility with standard power supplies while promoting ease of use.[SAFE AND RELIABLE TESTING] The 210S VI-Curve Tester allows for circuit board testing without powering it up, ensuring a safe environment while maintaining circuit integrity.[TESTING OPTIONS] This device effectively tests various circuits including digital and analog, making it suitable for diverse applications in electronics.[SIMULTANEOUS SIGNAL ANALYSIS] With dual channel input capabilities, users can analyze two signals at once, optimizing the performance assessment process.[CUSTOMIZABLE TEST PARAMETERS] Choose from four frequency settings and adjustable resistance levels to customize tests according to specific needs.[EASY POWER CONNECTION] Designed to work with a DC 5 2.1 interface, ensuring compatibility with standard power supplies for hassle-free use. Specifications:Part Name:210S VI-Curve TesterMaterial:ABSSize:140x80x40MMColor:blackVoltage: AC2.7VInternal resistance: 56R, 220R 1K 20K adjustableFrequency: 40Hz, 350Hz, 2kHz, 14Hz adjustablePackage Content:1*210S VI Curve Tester

• Dual-Channel Technology: Featuring advanced VI curve testing capability with dual-channel signal inputs for simultaneous analysis of two different signals, allowing electronics technicians to efficiently diagnose multiple points without switching connections - saving valuable troubleshooting time.
• Circuit Safety Protection: Test circuit without powering them using ASA (Analog Signature Analysis) methodology, protecting sensitive components from potential damage while accurately identifying faults in digital, analog, and mixed-signal components - the safer approach to professional electronics diagnosis.
• Customizable Testing Parameters: Equipped with 4 adjustable frequency settings (40Hz, 350Hz, 2kHz, 14Hz) and 4 selectable resistance levels (56R, 220R, 1K, 20K), enabling precise configuration for testing various component types from microprocessors to passive for ELEMENTS on complex PCBs.
• Compact Professional Design: Housed in a ABS casing measuring 140x80x40MM, this portable circuit analyzer fits comfortably in toolkits and workbenches, featuring clearly labeled controls and an intuitive interface for both experienced technicians and electronics students.
• Complete Testing Solution: Ready for immediate implementation in electronics repair shops, educational labs, and manufacturing quality control departments - simply connect to a standard DC 24V 1A power adapter (via 5.5*2.1 interface) to begin comprehensive circuit board fault detection and component verification.
